Echo CSG-7410 Cut-Off Saw

Echo CSG-7410 Cut-Off Saw

SKU: CSG-7410Categories: Cut-Off Machines
Not yet rated(0)

As more people expand their living space into the outdoors, landscape/hardscape contractors need dependable and powerful tools to create a dreamscape for outdoor entertainment. ECHO’s CSG-7410 cut-off saw offers the highest cutting torque, one of the best air cleaning systems and more professional features giving contractors more power and durability for those tough hardscape jobs.

$1,349.99

To maintain brand standards, this product is only available for purchase in-store.

Please call 972-235-2086 for details or to arrange in-store pickup.

Echo CSG-7410 Cut-Off Saw Overview

Powered by a 73.5 cc 2-stroke professional-grade engine, the CSG-7410 provides more torque at the wheel due to a 2.6:1 drive ratio.  High torque translates into a greater ability to cut through masonry blocks or concrete without bogging down.  The saw also has a reversible cutting arm with a standard position for normal cutting and a reversed (outside mount) position to cut close to buildings or ground obstacles.

The CSG-7410 is extremely easy to start due to the spring-assist starter, decompression valve, choke with automatic fast idle and purge bulb. The starter system is completely sealed. The patented 4-stage air cleaner system protects the engine for longer life. The CSG-7410 is packed with professional features and comes with a one year warranty, making it ideal for landscape/hardscape contractors.

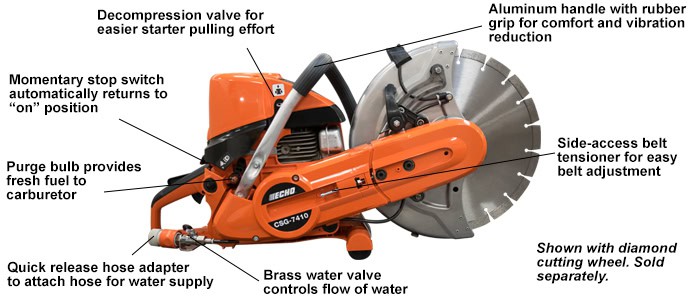

Echo CSG-7410 Cut-Off Saw Features

  • 73.5 cc professional-grade, 2-stroke engine
  • Four-stage air filtration system protects engine from harmful dust ingestion
  • Decompression valve for easier starter pulling effort
  • Momentary stop switch automatically returns to “on” position
  • Purge bulb provides fresh fuel to carburetor
  • Side-access belt tensioner for easy belt adjustment
  • Reversible cutting head can be moved to enable cutting near a wall or close to the ground
  • Aluminum handle with rubber grip for comfort and vibration reduction
  • Brass water valve controls flow of water
  • Quick release hose adapter to attach hose for water supply
  • Abrasive wheel included, diamond wheel sold separately

Echo CSG-7410 Cut-Off Saw Specifications

Engine Displacement (cc) 73.5 Max. Engine Speed (rpm) 9,800
Max. spindle Speed (rpm) 3,820 Drive System Ratio 2.6
Arbor Size (mm) 20 & 25.4 Weight* (lb) (w/o wheel) 23.6
Fuel Capacity (fl. oz.) 23.7 Wheel Diameter (in.) 14
Start/Stop Switch Momentary Decompression Valve Yes
Purge Bulb Yes Choke w/Fast Idle Yes
Max. Cutting Depth (in.) 4.9 Wheel Included Abrasive
Warranty 1 year
Weight 23.6 lbs
Discontinued Product

Power Source

Gas
